BIM to AR: Augmented Reality Construction Site Overlay
See Your Building Before it Exists with AR BIM.
Directly overlay live IFC models onto your construction site to close the design to physical execution gap. Detect clashes and check as-built data in real-time on iOS and Android with LiDAR-anchored Augmented Reality.
Delta AR BIM is an IFC-first platform that translates BIM to AR within less than 60 seconds, with spatial precision of ±2cm to ensure that field teams do not have to rework.
IOS & ANDROIDLIDAR ±2CMIFC OPEN STANDARD100% OFFLINEMARKERLESS ARCLASH DETECTION
BIM OVERLAY LIVE
ALL LAYERS ACTIVE
STRUCTURE
HVAC DUCTS
MEP WATER
ELECTRICAL
CLASH DETECTED
±2cm
Spatial Accuracy
100%
Offline Capable
<60s
IFC to AR
IFC
Open Standard
Measurable ROI
Digital Construction Intelligence: Eliminating Rework with AR
The Issue: Construction projects are losing billions of dollars as designs remain on laptops and workers work with printed drawings

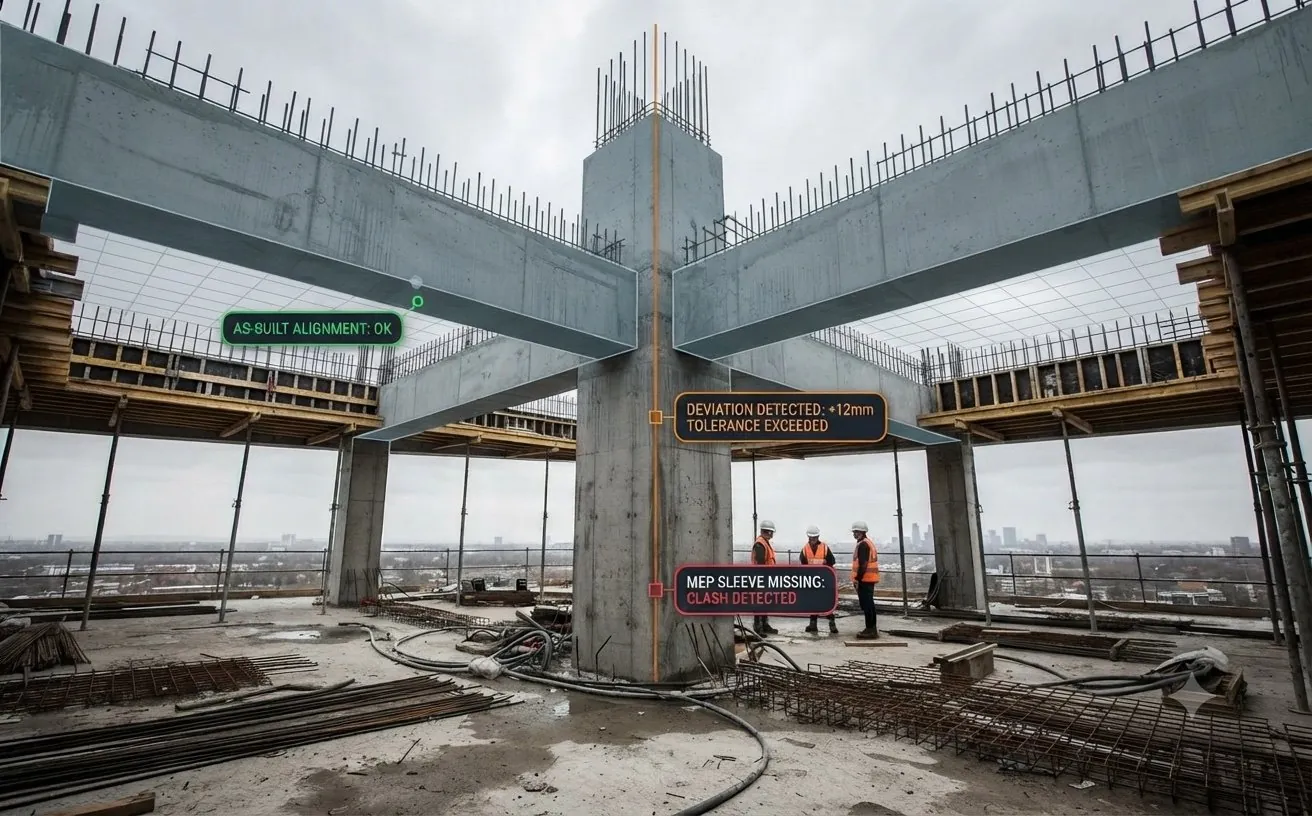

The Solution: In our Augmented Reality building solution, all structural columns and MEP pipes are placed directly on the site.
AR Scan // ±2cm Spatial Accuracy for Augmented Reality BlueprintsLive AR BIM: Multi-Layer
Live AR BIM: Multi-Layer
IFC Coordination on Site
Switch on and off each layer. Just as it is in a real construction site. Delta AR BIM also makes your augmented reality blueprints interactive, so that when you press any layer button, you can show or hide certain trades to have unambiguous coordination.
AR LIVE
IFC
● LIDAR · ±2CM · 60FPS
⚠ CLASH DETECTED
IFC layers in your hands.
All IFC disciplines are color-coded and can be individually switched off, such as Structural, MEP, architectural, enabling you to isolate any trade without losing spatial reference on-site.
→ BIM Structure Layer
View grey columns, beams and slabs in your IFC file overlaid accurately to ensure that they are in place on-site before the concrete is poured.
→ Wall & Slab Layer
Semi-transparent panels depict walls and holes in computerized construction-catch errors before they are actually constructed.

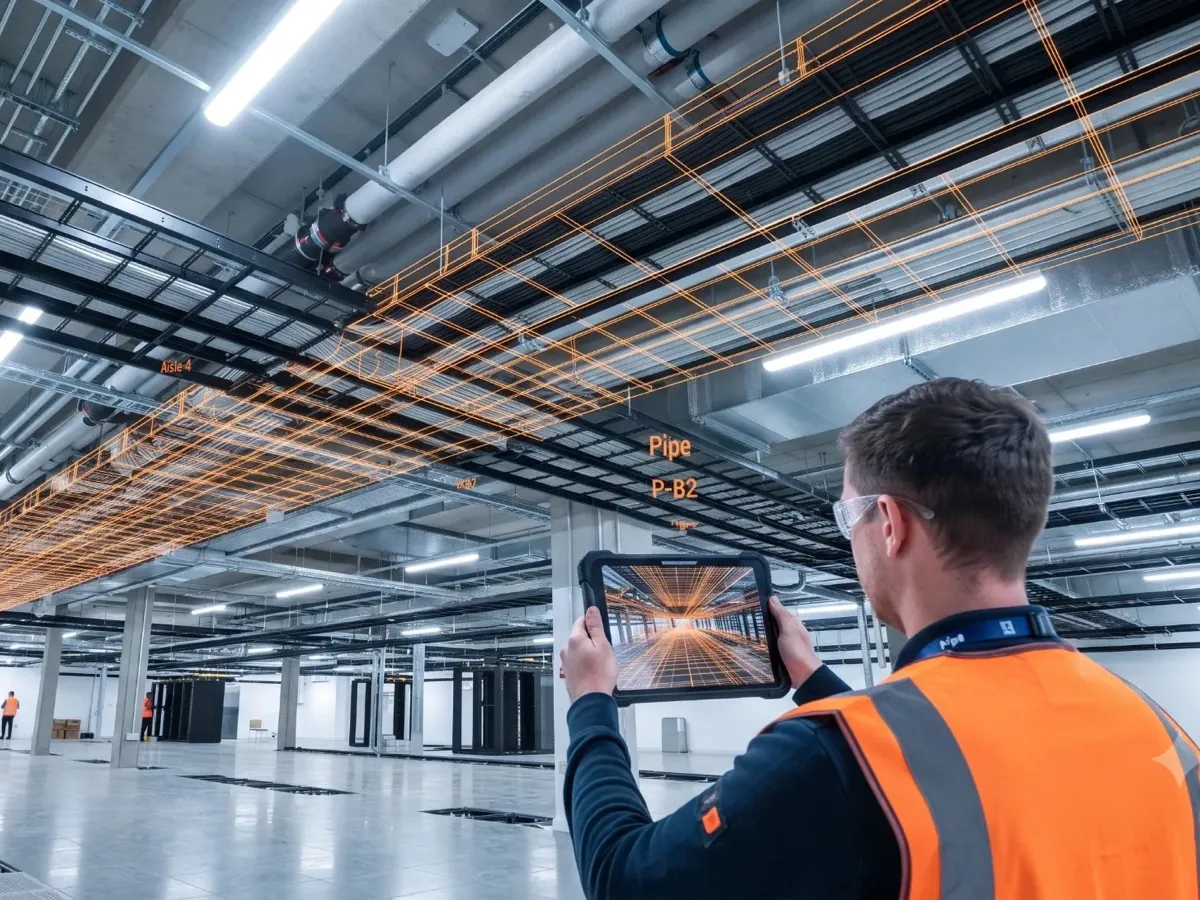

→ MEP Pipes & Ducts
Visualize red HVAC, blue water, and yellow electrical systems. This AR BIM toggle allows you to isolate certain trades to inspect clashes in real-time.

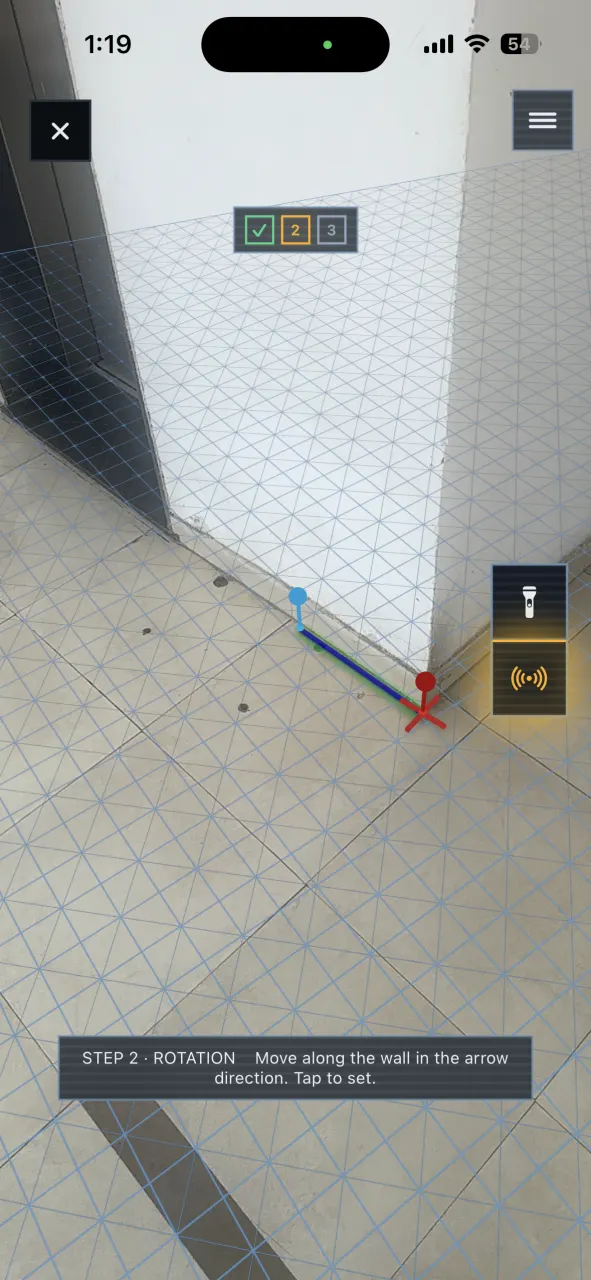

→ AR Anchor Points
LiDAR nodes fix the IFC model to physical coordinates to ensure that the augmented reality building overlay does not drift, and the accuracy is within ±2cm.
HOW IT WORKS

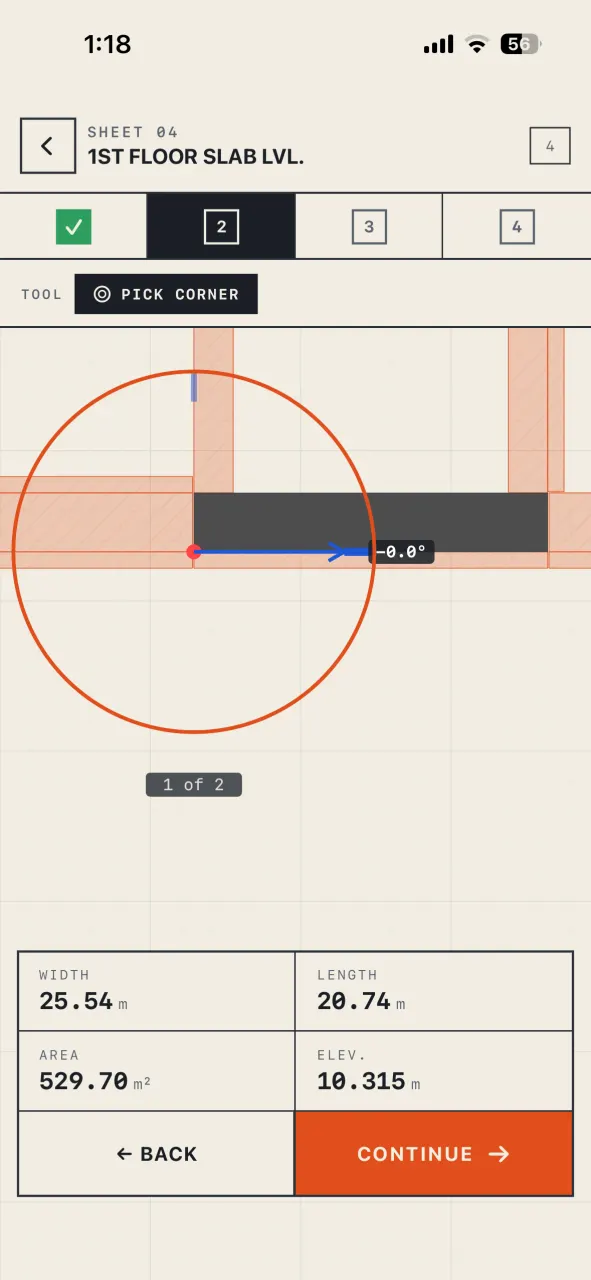

From IFC file to live AR overlay in under 60 seconds.
UPLOADING IFC
01/05
Delta ARBIM
Capabilities
AR for Construction — Built for the job site.
All functionalities have been designed for the field – dust, sun, lack of connections, and moving crews. In this chapter, we will examine high-end digital construction tools designed to meet the needs of field execution following office-based BIM software.

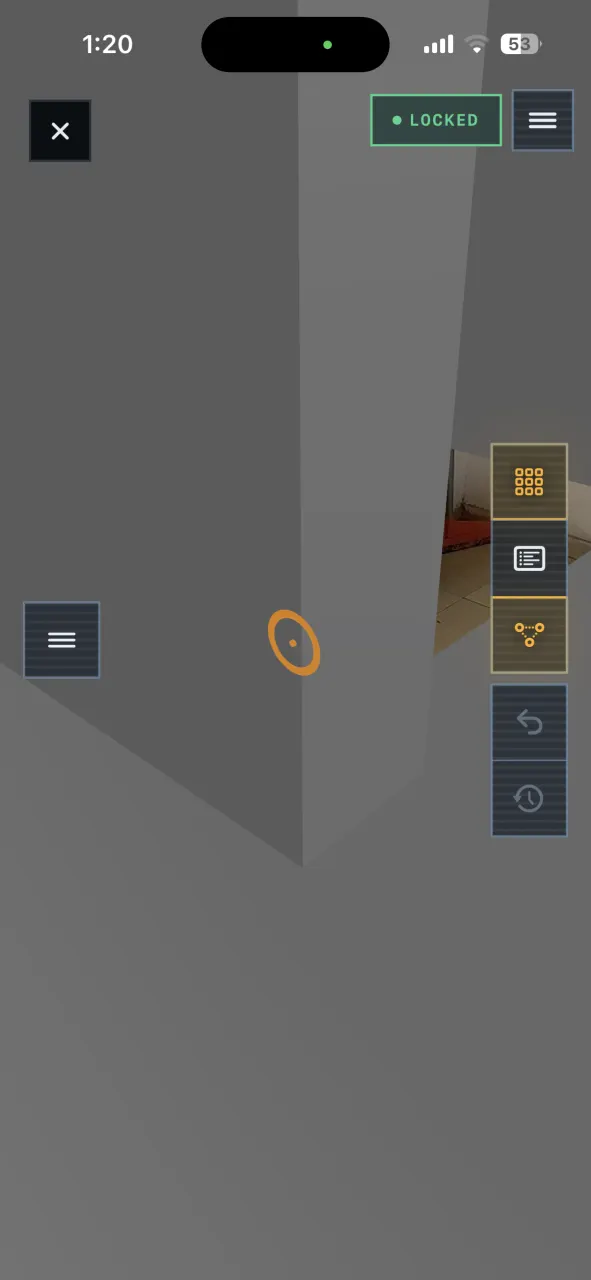

Live IFC AR 3D Overlay
View your entire IFC model in 3D AR overlay at actual scale, overlaid on the real world. Walk through walls, validate placements, and check hidden MEP installations all in 3D AR.
REAL-TIME AR · IFC

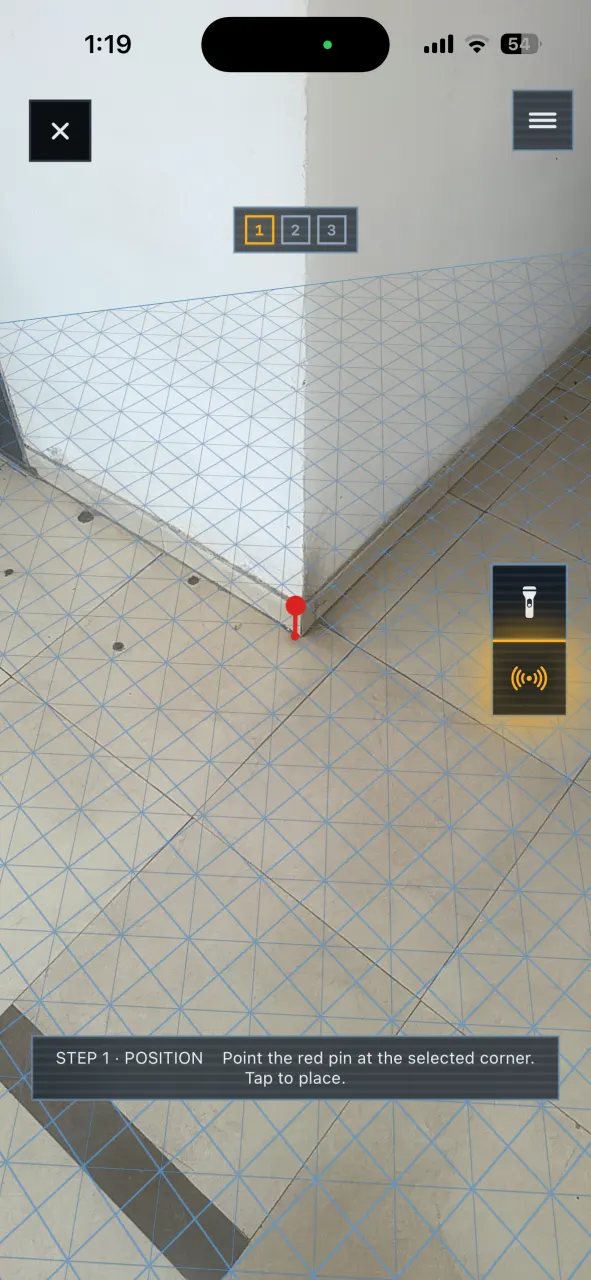

LiDAR Room Scan Comparison
Get accurate as-built measurements by scanning room dimensions using your device’s LiDAR sensor. Compare point cloud scans against your IFC file and receive instant notifications of structural discrepancies without involving a surveyor.
POINT CLOUD · AS-BUILT
Automated Clash Detection
Identify clashes between your 3D model and actual space with Delta ARBIM. Go precisely where the clash occurred and visualise it in context—no need for your laptop.
CLASH ENGINE · AUTOMATED
Multi-Layer IFC Control
Toggle structural, MEP, architectural, and fit-out layers independently. Isolate any discipline mid-walk without losing your spatial reference in the augmented reality building environment.
IFC LAYERS · FULL CONTROL
Markerless Geo-Anchoring
Leverage LiDAR and Computer Vision to lock down IFC models to physical locations with centimetre-level accuracy. Enjoy freedom of movement without marker prints, QR codes, or GPS limitations indoors.
CV ANCHORING · ±2CM
In-field Issue Reporting and Annotation
Report problems in AR mode, take geo-referenced screenshots, and send issue reports directly to Procore, Autodesk Construction Cloud, or any custom webhook.
INTEGRATIONS · GEO-TAGGED
Built for Your Role
The right solution for every team on site.
80%
Less QA/QC
30%
Rework Cut
Cut rework and delays on every build.
- Visualise your IFC model in the exact position on the jobsite to verify design is executed correctly
- AR-powered QA/QC walkthroughs that spot deviations in minutes, not hours
- Compare as-built conditions against the IFC model and tag issues with a single tap
- Reduce coordination meetings by giving foremen direct visual access to the IFC model
- Works offline for basements, tunnels, and low-connectivity zones
Structural Verification
Confirm rebar placement, column positions, and slab elevations against the structural IFC model before concrete is poured.
AR-Powered QA/QC
Replace paper-based checklists with live AR overlays. Walk the floor and see exactly where deviations exist.

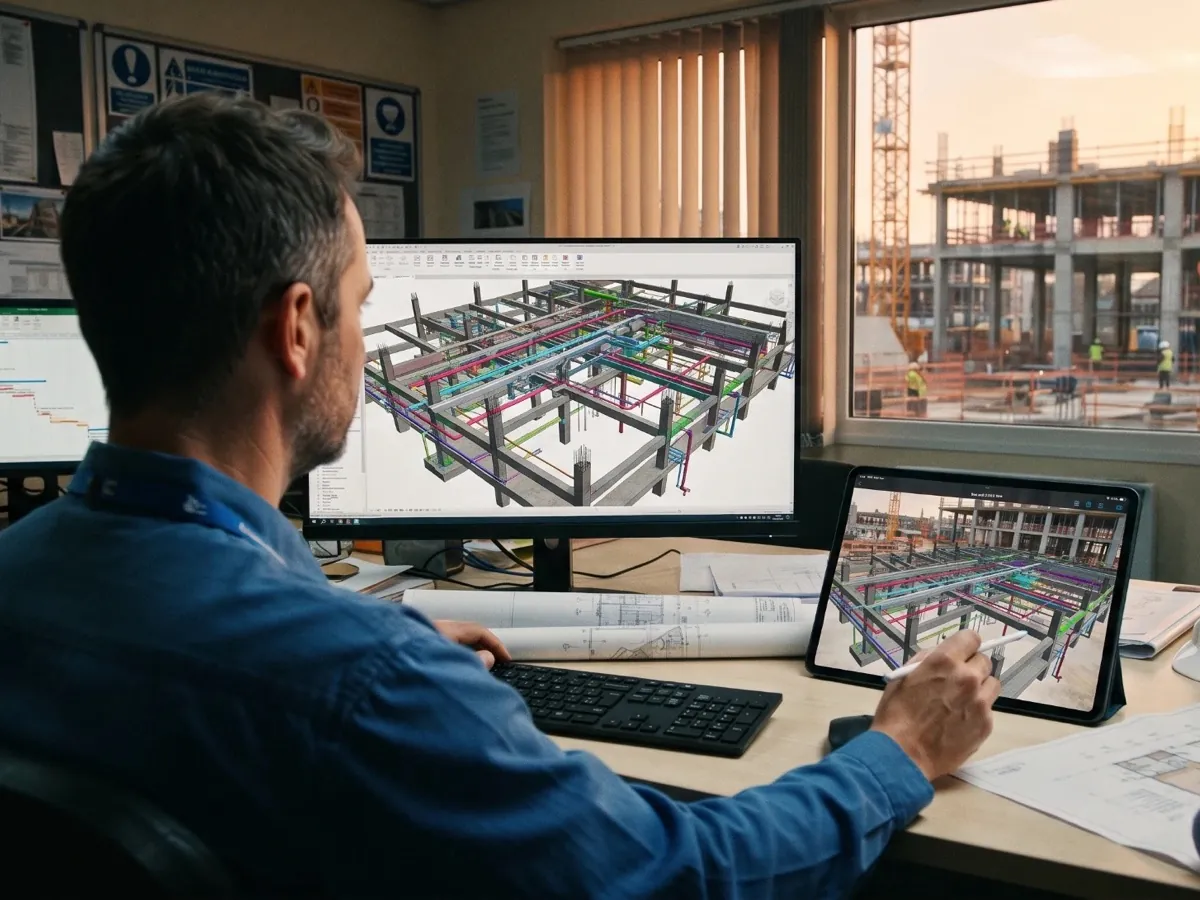

Design Coordination On-Site
Surface design conflicts in the field before they become construction conflicts. Share geo-tagged screenshots to BIM team.
Faster Subcontractor Handoffs
Walk incoming subs through the IFC model on-site in AR. Reduce briefing time at critical handoff moments.
LIVE FIELD RECORDING
UGC · REAL SITE

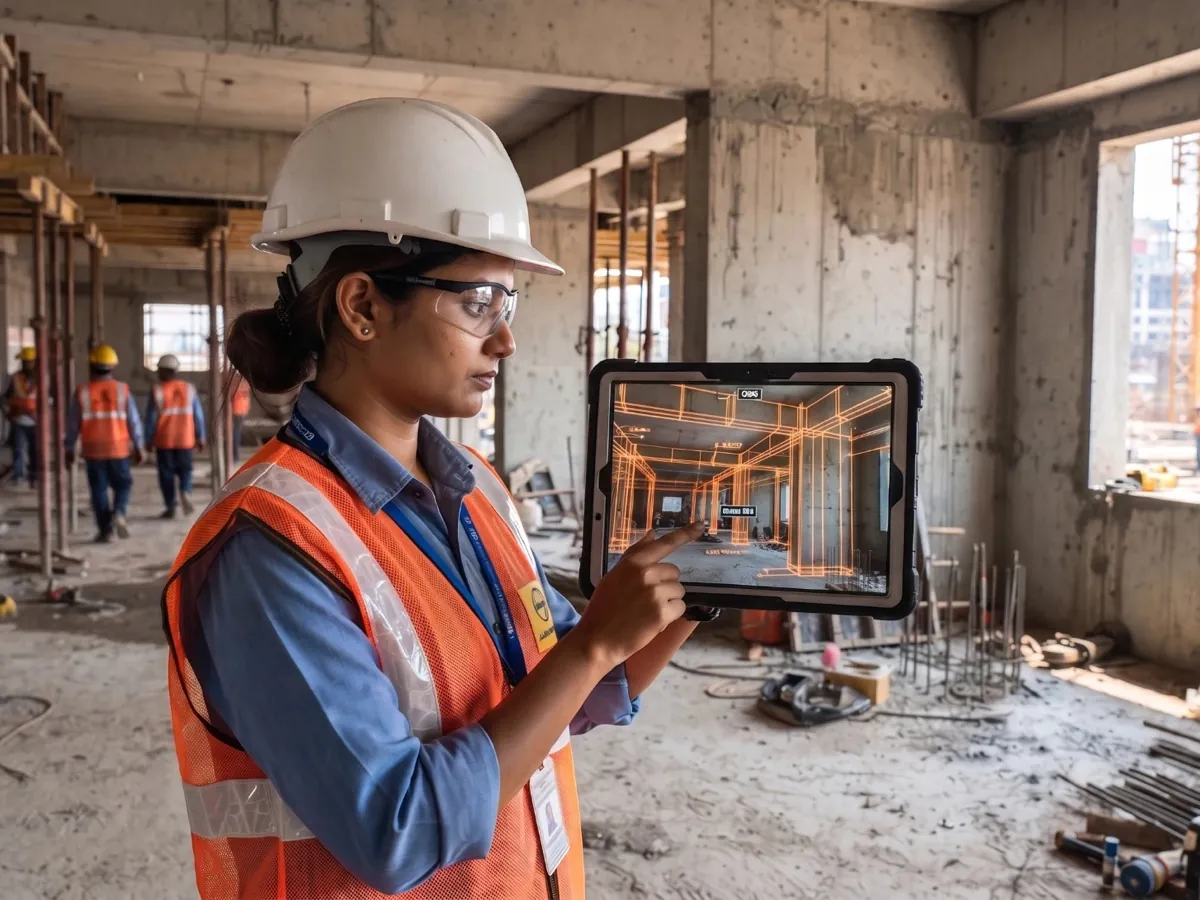

Real Human. Real Site. Real AR.
Watch Delta ARBIM on an active construction site.

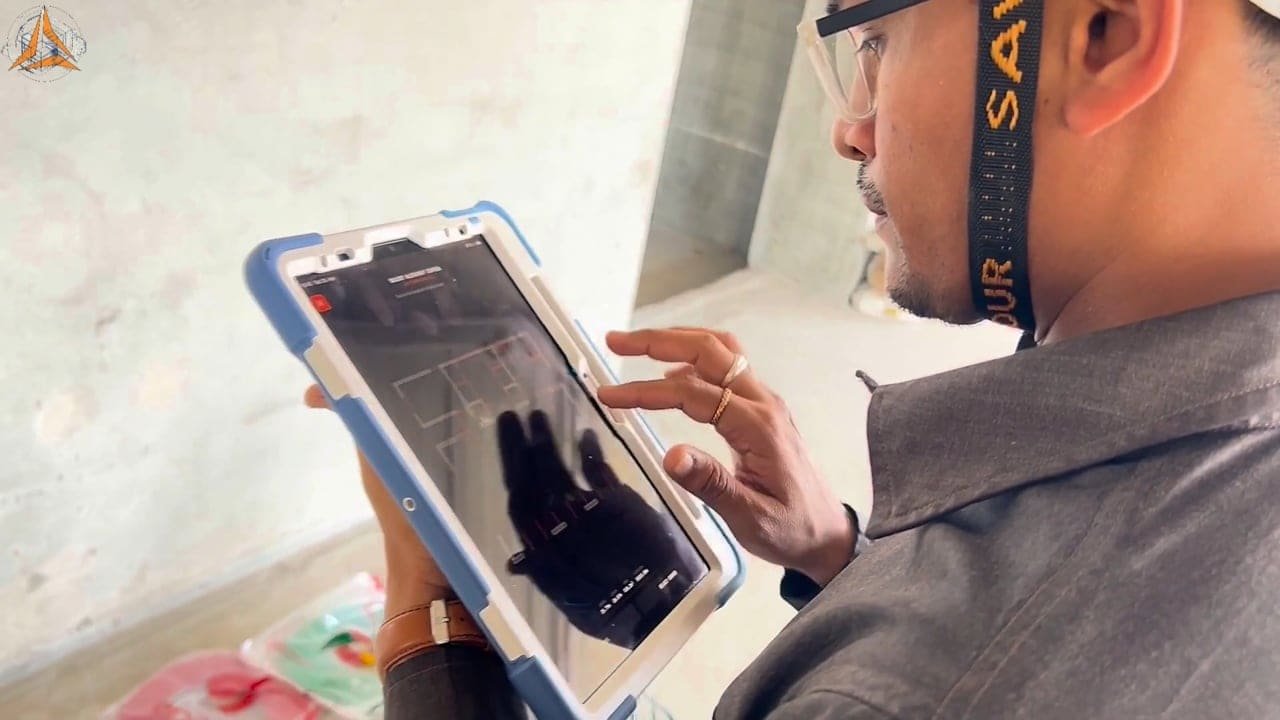

See our engineer step onto a live construction floor, open Delta ARBIM and align the entire IFC model in less than 60 seconds. See how Augmented Reality can be used practically in the construction industry to identify a duct clash prior to the concrete being poured.
- Live IFC model aligned to the real site — columns, MEP runs, slabs overlaid precisely.
- HVAC duct clash detected and flagged visually in AR before installation.
- Markerless geo-anchoring — no QR codes, no printed markers, no GPS required.
- LiDAR room scan vs as-designed IFC — deviation flagged in seconds.
Live AR Simulation — Delta ARBIM Engine
Your site. Your IFC model. Perfectly aligned.
This demo shows a multiple-building construction layout, where you can see the structure grid, moving MEP pipe routes, automated clash detection markers, and dynamic LiDAR scanning planes. With Delta ARBIM, you are assured of having the perfect alignment of your digital construction data with the actual physical construction site.
±2cm
Spatial Precision
Enjoy the best precision in the industry for performing augmented reality construction and structural inspection projects.
60fps
AR Rendering Speed
Our high-speed engine ensures seamless rendering even while working on complex IFC models.
IFC
Open BIM Standard
This means 100% compatibility with industry standards (IFC2x3, IFC4), so you don’t need to change your favourite BIM software.
100%
Offline Functionality
Built for the realities of the job site, our engine operates in basements, tunnels, and low-connectivity zones without data loss.
Our Clients
Trusted by Teams on the Ground.
Client Name
Client Name
UAE
Client Name
Client Name
India
Client Name
Client Name
UAE
Client Name
Client Name
India
Client Name
Client Name
UAE
Client Name
Client Name
India
Client Name
Client Name
UAE
Pricing
Pricing built around your project.
No rigid tiers. Custom plans for every team size. 14-day free trial — no credit card. ₹ INR billing available for Indian teams.
Early access partners get 30% off Professional & Enterprise at launch.
For Small Teams
Field
Small contractors and MEP subs running 1–2 active IFC projects on site.
Custom
built for your team · INR billing available
For Growing Teams
Project
Multiple active IFC projects, larger field crews, office-to-site sync. The full Delta ARBIM experience.
Custom
built for your team · INR billing available
For Large Contractors
Enterprise
Unlimited IFC projects, custom integrations, white-label options, global site visits.
Custom
dedicated onboarding · SLA support
All plans include a 14-day free trial with your actual IFC model. · See full pricing details →
Book Your Demo
See Delta ARBIM on your actual site.
Bring your IFC model. We bring it to life in real-time AR — so you see exactly what Delta ARBIM does for your specific project and team.
- 30-minute live walkthrough using your own IFC model
- Side-by-side clash detection across your actual MEP and structural layers
- Direct access to our engineering team — no sales script
- Early access partnership offer for qualified construction teams
- Available remotely or on-site globally
Request a Demo
We'll be in touch within 24 hours to schedule your session.
FAQ
Everything you need to know about Delta ARBIM.
Delta ARBIM is an IFC-based augmented reality BIM platform that overlays your live 3D building model directly onto the real construction site through your device camera. Using LiDAR and computer vision, it anchors your IFC model to real-world coordinates with ±2cm accuracy—no QR codes or printed markers required.
Absolutely. Delta ARBIM was purpose-built for MEP coordination. You can overlay HVAC ducts (red), water pipes (blue), and electrical conduits (yellow) independently in AR to detect clashes against the structure before fabrication begins.
Yes. Delta ARBIM integrates natively with Procore and Autodesk Construction Cloud on Project and Enterprise plans. Field reports, geo-tagged clash screenshots, and deviation logs sync directly to your project management platform.
Yes. Delta ARBIM is built by an India-based technology team with awareness of local site conditions, connectivity constraints, and project workflows. INR billing and GST-compliant invoicing are available.
Can't find your answer?
Ask Our Engineering Team →About Delta ARBIM
Engineered in Bharat.Built for the world.
Delta ARBIM was built by an India-based technology team with deep engineering experience across AR, mobile, and construction technology. We spent years watching the same site coordination problems repeat—the IFC model existed, the site existed, and nothing connected them. So we built the connection.
So we built the connection.
AR / BIM TechMobile & WebDevOps & InfraIFC Open StandardDigital Identity
10+
Years Engineering XP
50+
Projects Delivered
6
Languages Supported
Global
Teams Welcome
Open To:
- IFC-Based MOU partnerships
- Annual subscription contracts
- On-site visits globally
- Enterprise white-label options
Get Early Access · Limited Spots
Start using Delta ARBIM on your site today.
Early access partners get locked-in pricing, direct roadmap input, and dedicated onboarding. We onboard construction teams personally — not with a help doc.
- 30% off Professional & Enterprise plans — locked for life
- Direct access to our engineering team for onboarding
- Live demo using your actual IFC model before you commit
- Priority support during your first 90 days on site
- Input on product roadmap and upcoming AR features
INR billing · GST invoicing
14-day free trial · No credit card
100% offline · Works on any iOS/Android
We reply within 24 hours · Personally
Request Early Access
We'll reach out within 24 hours — personally, not a bot.
